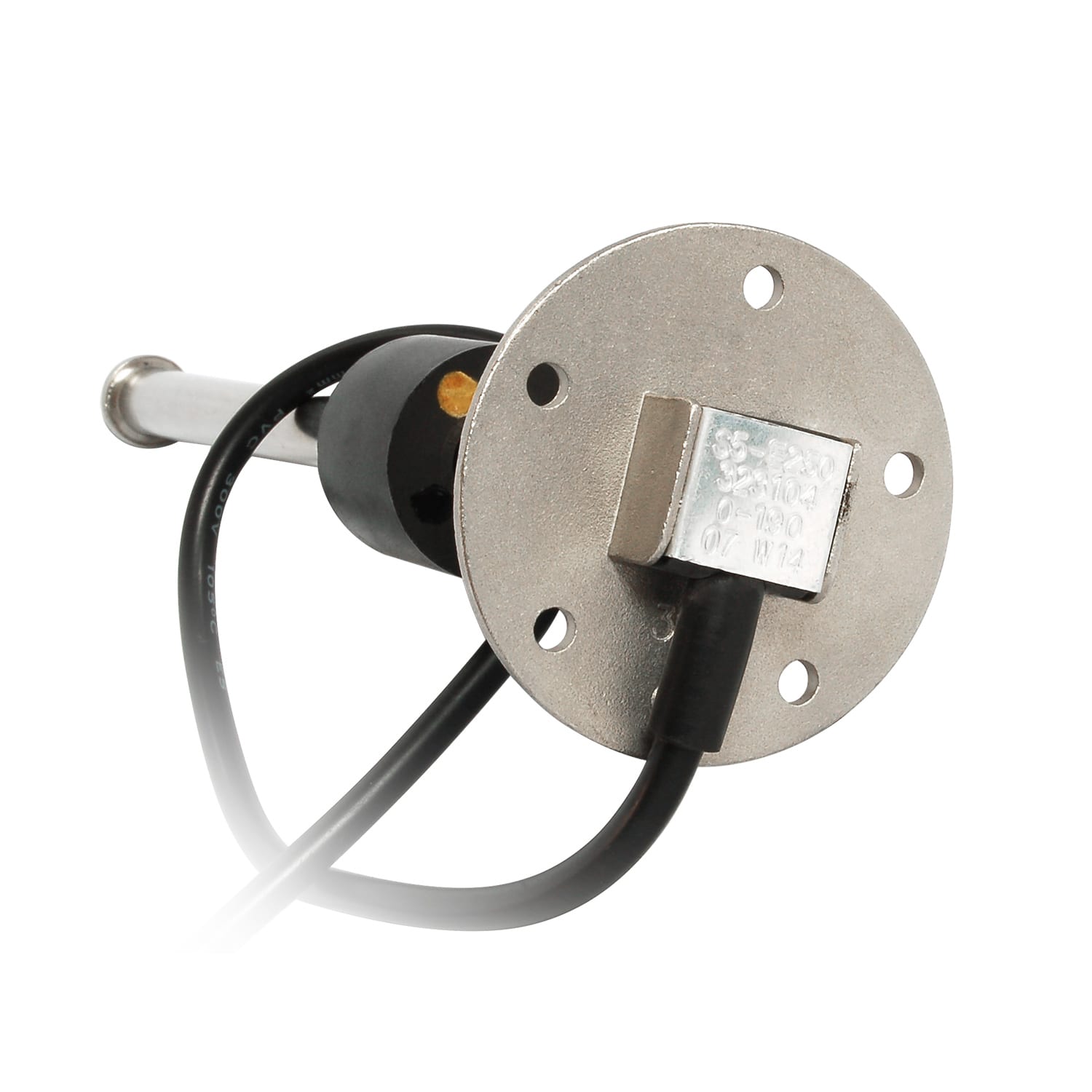

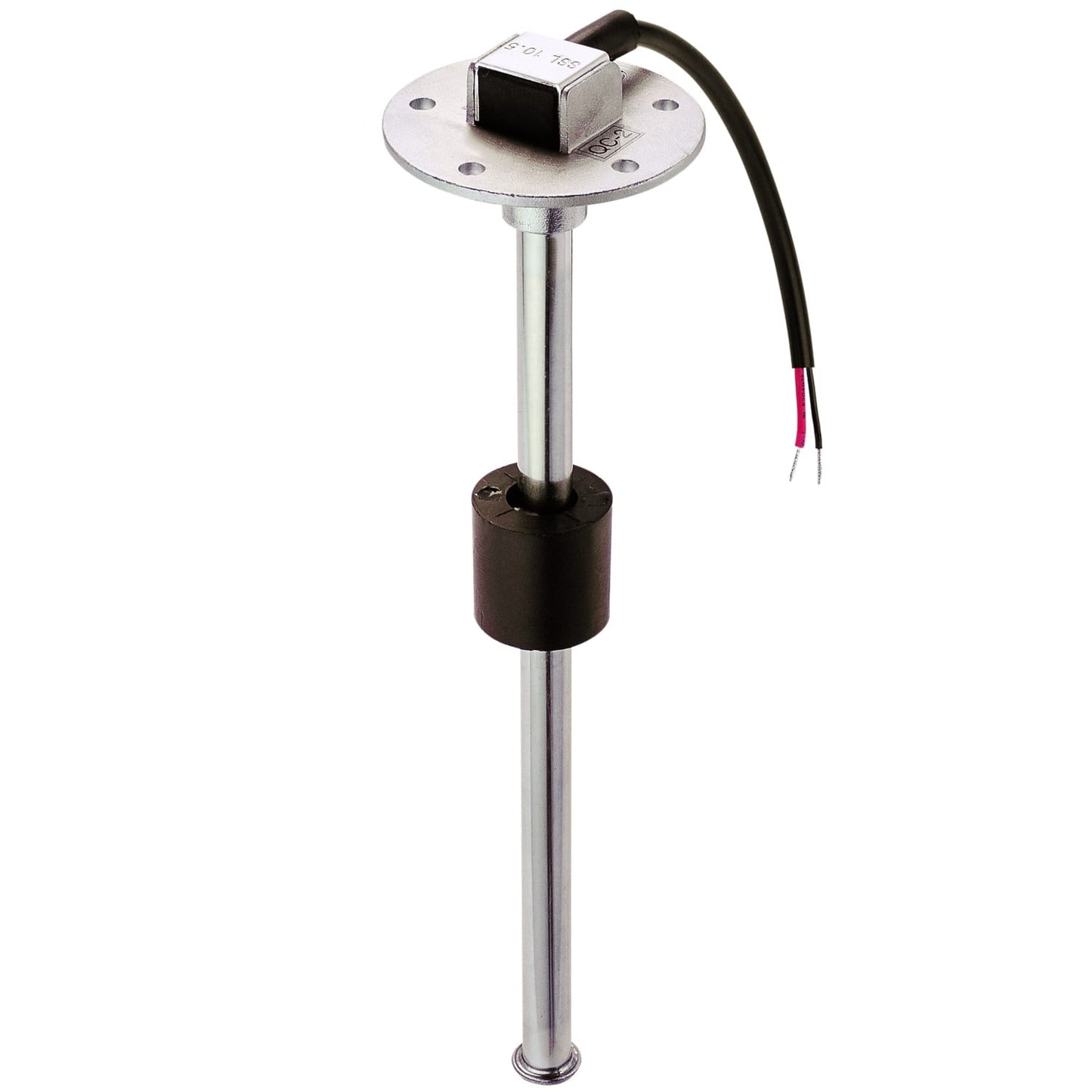

Fuel Level Sender - Fuel Tank Sending Unit

Fuel Level Sender - Fuel Tank Sending Unit

$34.65
$34.65
Sale Sold out
Sensor Length

Electric liquid level sending units are commonly used across a wide range of applications, including marine vessels, on-road and off-road vehicles, generator sets, and industrial equipment. These units operate using reed switch and magnetic field technology. Compared to traditional thick-film swing arm designs, reed switch senders offer greater reliability and long-term durability. With the float being the only moving component, the risk of mechanical failure is significantly reduced.

American Standard 240-33 ohms (240 ohms at empty, 33 ohms at full)


Liquid Level Sender with American standard output (240 ohms at empty, 33 ohms at full). It is based in ABYC standard, and are non-linear.

Range difference: + / – (R*1.5 % + 1 Ohm)

  • 33 ohm at 100%
  • 67.5 ohm at 75%
  • 105 ohm at 50%
  • 142.5 ohm at 25%
  • 240 ohm at 0%

For European Standard Output (0 ohms at empty, 180 ohms at full)
